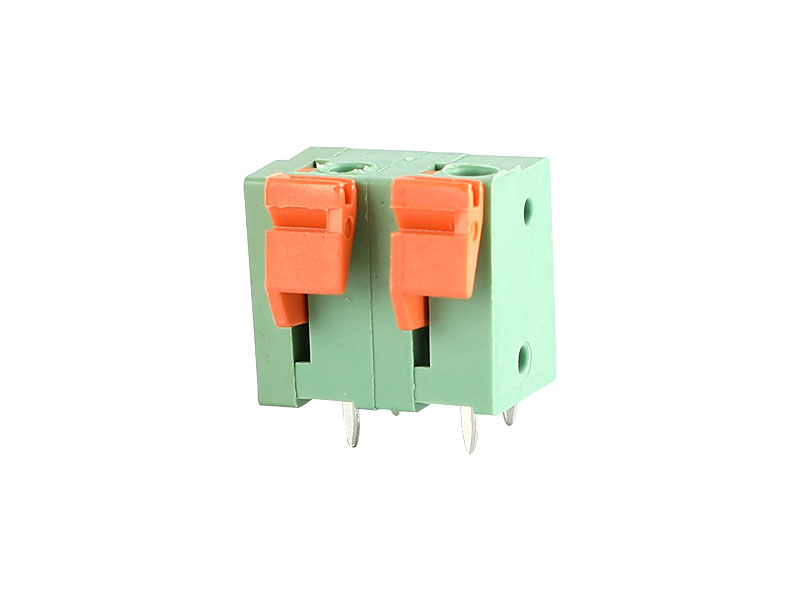

MG142V-5.08/7.62 PCB SPRING TERMINAL BLOCK

MG142V-5.08/7.62
PCB SPRING TERMINAL BLOCK

0
Views: 103
Contact us

Product parameters

 材质及电镀  MATERIAL
 间距 5.08/7.62MM  Pitch 5.08/7.62MM
 极数 1-XXP  Poles 1-XXP
焊针 黄铜、镀锡 Contact Brass、Tin Plated
弹片 不锈钢 Clips Stainless steel
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压 300V  Rated voltage 300V
 额定电流 10A  Rated current 10A
 耐电压 AC2000V/1Min  Withstanding Voltage  AC2000V/1Min
 使用线径 22-16AWG  Wire range 22-16AWG

 机械性能    MECHANICAL
 温度范围  -40℃~+105℃  Temp.Range  -40℃~+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
 剥线长度 11mm  Strip length 11mm
