MG801 FEED THROUGH TERMINAL BLOCK Wholesale

MG801 FEED THROUGH TERMINAL BLOCK

MG801
FEED THROUGH TERMINAL BLOCK

0
Views: 1,309
Contact us

Product parameters

认证 APPROVAL

材质及电镀 MATERIAL
间距 10.0 MM Pitch 10.0 MM
极数 2P,3P,4P,5P,6P Poles 2P,3P,4P,5P,6P
螺丝 M3、钢、镀锌 Screws M3、Steel、Zinc plated
端子 黄铜、镀镍 Contact Brass、Ni Plated
塑件 PA66.UL94V-0 Housing PA66.UL94V-0

电气性能 UL IEC ELECTRICAL UL IEC
额定电压 300V 250V Rated voltage 300V 250V
额定电流 6.3A 6.3A Rated current 6.3A 6.3A
耐电压 AC2500V/1Min Withstanding Voltage AC2500V/1Min
使用线径 22-14AWG Wire range 22-14AWG

机械性能   MECHANICAL
温度范围 -40℃~+105℃ Temp.Range -40℃~+105℃
扭矩 0.5Nm(4.4lb.in.) Torque 0.5Nm(4.4lb.in.)

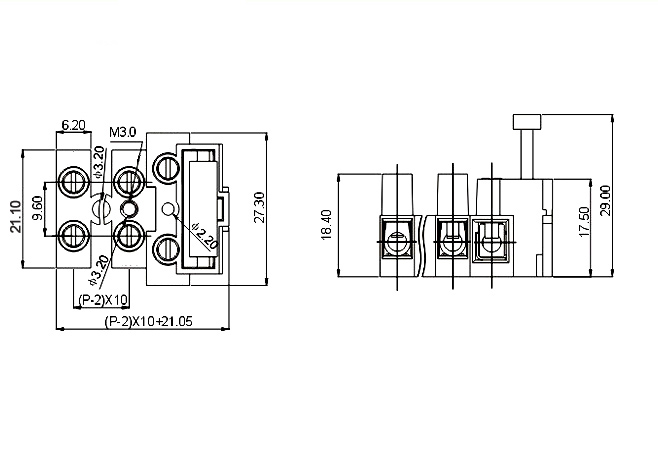

DRAWING DOWNLOAD
