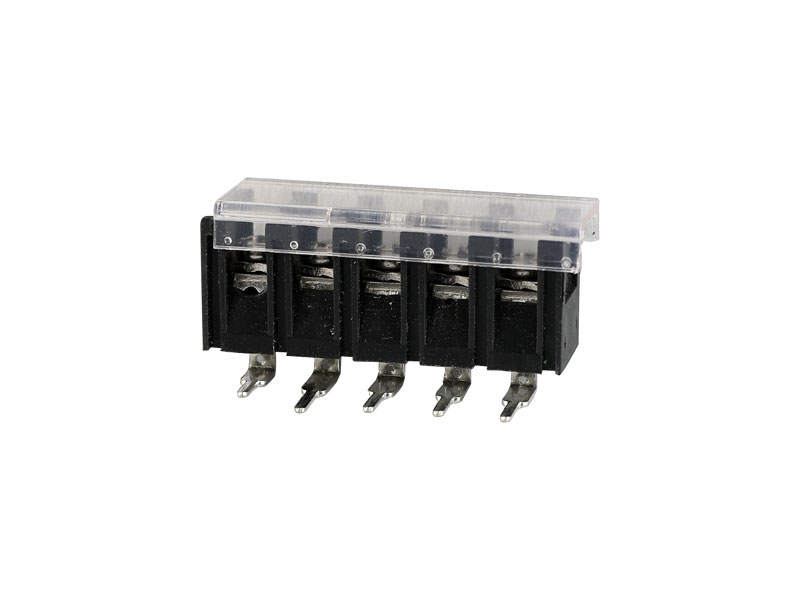

MG16-6.35 BARRIER TERMINAL BLOCK

MG16-6.35
BARRIER TERMINAL BLOCK

0
Views: 45
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 间距 6.35MM  Pitch 6.35MM
 极数 2P-24P  Poles 2P-24P
螺丝 M3、钢、镀镍 Screws M3、Steel、Ni Plated
端子 黄铜、镀锡 Wire guard Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage 750V
 额定电流 10A  Rated current 10A
 耐电压 AC2000V/1Min  Withstanding Voltage  AC2000V/1Min
使用线径 22-16AWG Wire range 22-16AWG

 机械性能    MECHANICAL
 温度范围 -40℃~+105℃  Temp.Range -40℃~+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
扭矩 0.5Nm(4.4lb.in) Torque 0.5Nm(4.4lb.in)



DRAWING DOWNLOAD
