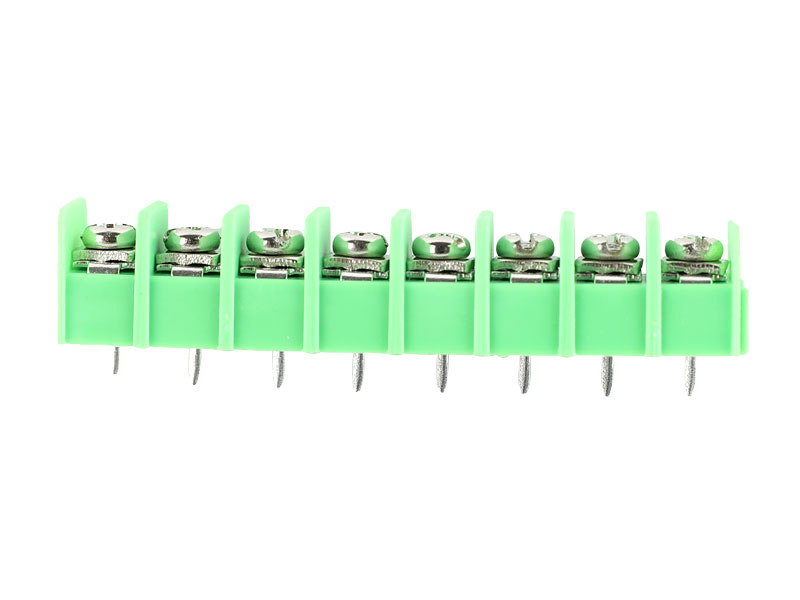

MG500-5.0/5.08 PCB SCREW TERMINAL BLOCK

MG500-5.0/5.08
PCB SCREW TERMINAL BLOCK

0
Views: 94
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 间距 5.0/5.08MM  Pitch 5.0/5.08MM
 极数 2P、3P  Poles 2P、3P
螺丝 M2.5、钢、镀锌 Screws M2.5、Steel、Zinc Plated
方扣 钢、镀锌或黄铜、镀镍 Wire cage Steel、Zinc plaed or Brass、Ni plated
焊针 黄铜、镀锡 Pin Header Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage  300V
 额定电流 10A  Rated current 10A
 耐电压  AC2000V/1Min  Withstanding Voltage   AC2000V/1Min
使用线径 24-12AWG Wire range 24-12AWG

 机械性能    MECHANICAL
 温度范围 -40℃~+105℃  Temp.Range -40℃~+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
扭矩 0.4Nm(3.5lb.in) Torque 0.4Nm(3.5lb.in)
剥线长度 6-7mm Strip length 6-7mm
