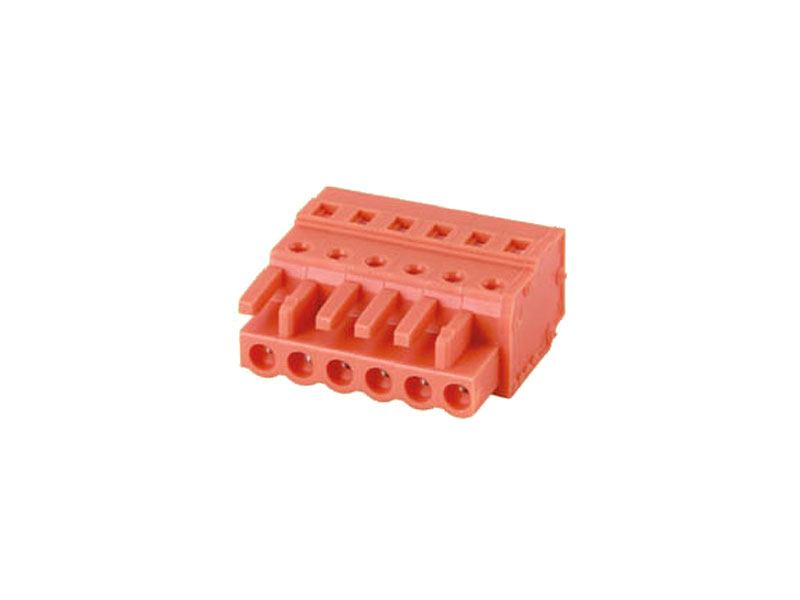

MG168-5.0 PCB SCREW TERMINAL BLOCK

MG168-5.0
PCB SCREW TERMINAL BLOCK

0
Views: 218
Contact us

Product parameters


 材质及电镀  MATERIAL
 间距 5.0MM  Pitch 5.0MM
 极数 2P-8P  Poles 2P-8P
螺丝 M2.5、钢、镀镍 Screws M2.5、Steel、Ni Plated
弹片 不锈钢 Clips Stainless steel
 焊针 黄铜、镀锡  Pin Header Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage  300V
 额定电流 10A  Rated current 10A
 耐电压  AC2000V/1Min  Withstanding Voltage   AC2000V/1Min
使用线径 20-12AWG Wire range 20-12AWG

 机械性能    MECHANICAL
 温度范围 -33℃~+120℃  Temp.Range -33℃~+120℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
剥线长度 6-7mm Strip length 6-7mm



DRAWING DOWNLOAD
