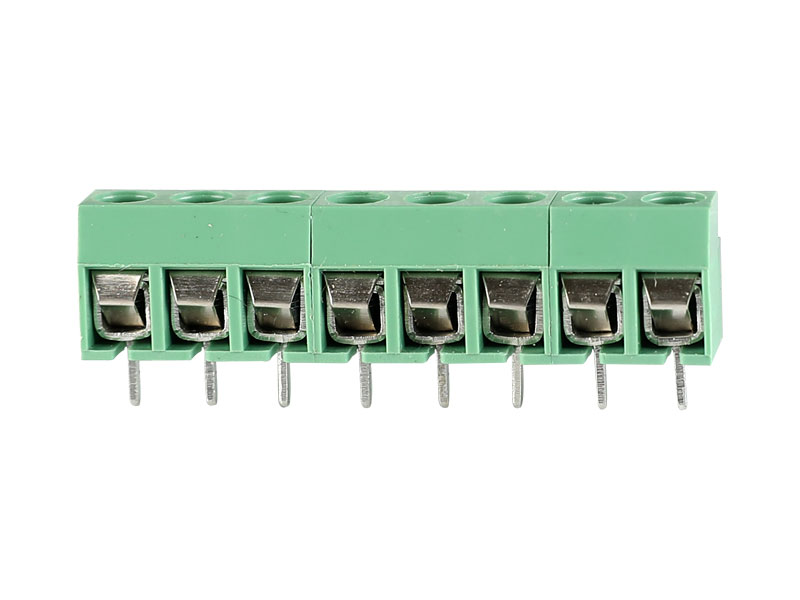

MG128-3.81 PCB SCREW TERMINAL BLOCK

MG128-3.81
PCB SCREW TERMINAL BLOCK

0
Views: 1,284
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 间距 3.81MM  Pitch 3.81MM
 极数 2P、3P  Poles 2P、3P
螺丝 M2、钢、镀锌 Screws M2、Steel、Zinc Plated
方扣 黄铜、镀镍 Wire cage Brass、Ni plated
 焊针 黄铜、镀锡  Pin Header Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage  300V
 额定电流 10A  Rated current 10A
 耐电压  AC1250V/1Min  Withstanding Voltage   AC1250V/1Min
使用线径 26-16AWG Wire range 26-16AWG

 机械性能    MECHANICAL
 温度范围 -40℃~+105℃  Temp.Range -40℃~+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
扭矩 0.2Nm(1.7lb.in) Torque 0.2Nm(1.7lb.in)
剥线长度 5-6mm Strip length 5-6mm



DRAWING DOWNLOAD
