MG8H FEED THROUGH TERMINAL BLOCK

MG8H
FEED THROUGH TERMINAL BLOCK

0
Views: 1,564
Contact us

Product parameters

认证 APPROVAL

材质及电镀 MATERIAL
间距 8.0MM Pitch 8.0MM
极数 2-12P Poles 2-12P
螺丝 M2.5、钢、镀锌 Screws M2.5、Steel、Zinc plated
端子 合金、镀镍 Contact Alloy、Ni Plated
塑件 PA66.UL94V-0 Housing PA66.UL94V-0

电气性能 UL IEC ELECTRICAL UL IEC
额定电压 300V 450V Rated voltage 300V 450V
额定电流 15A 20A Rated current 15A 20A
耐电压 AC2500V/1Min Withstanding Voltage AC2500V/1Min
使用线径 20-14AWG Wire range 20-14AWG

机械性能   MECHANICAL
温度范围 -40℃~+105℃ Temp.Range -40℃~+105℃
扭矩 0.4Nm(3.5lb.in.) Torque 0.4Nm(3.5lb.in.)

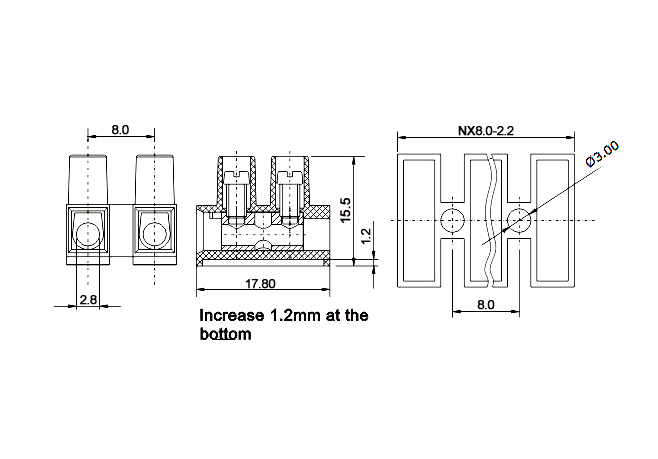

DRAWING DOWNLOAD
