MG295 FEED THROUGH TERMINAL BLOCK

MG295
FEED THROUGH TERMINAL BLOCK

0
Views: 1,294
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 极数 2P-40P  Poles 2P-40P
螺丝 M2.5、钢、镀镍 Screws M2.5、Steel、Ni Plated
弹片 铜、镀镍 Clips Brass、Ni Plated
方扣 黄铜、镀锡 Contact Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage 300V
 额定电流 30A  Rated current 30A
 耐电压  AC2000V/1Min  Withstanding Voltage   AC2000V/1Min
使用线径 18-10AWG Wire range 18-10AWG

 机械性能    MECHANICAL
 温度范围 -33℃~+120℃  Temp.Range -33℃~+120℃

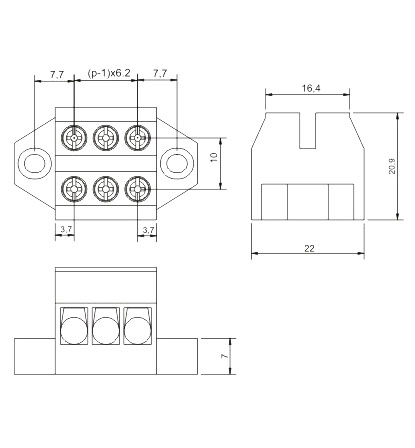

DRAWING DOWNLOAD
