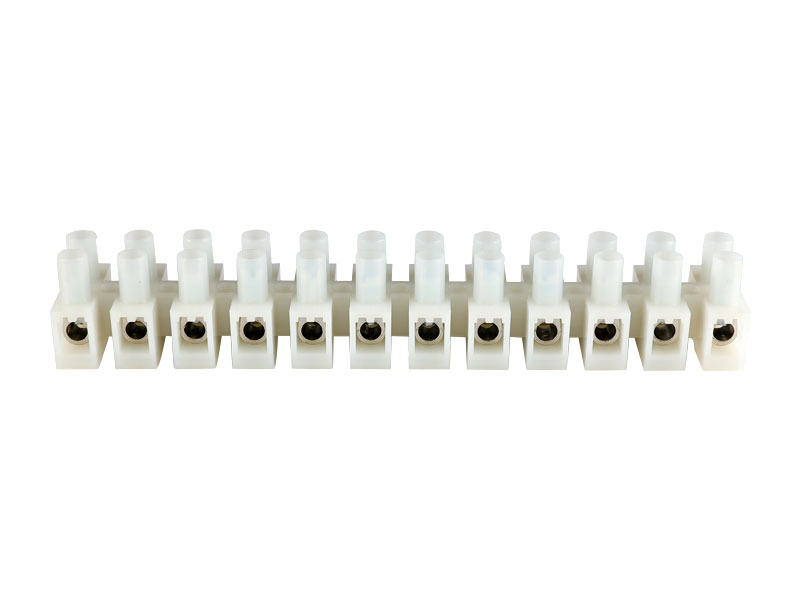

MG14HWP FEED THROUGH TERMINAL BLOCK

MG14HWP
FEED THROUGH TERMINAL BLOCK

0
Views: 1,047
Contact us

Product parameters

认证 APPROVAL

材质及电镀 MATERIAL
间距 13.5 MM Pitch 13.5 MM
极数 2-12P Poles 2-12P
螺丝 M4、钢、镀锌 Screws M4、Steel、Zinc plated
端子 合金、镀镍 Contact Alloy、Ni Plated
塑件 PA66.UL94V-0 Housing PA66.UL94V-0

电气性能 UL IEC ELECTRICAL UL IEC
额定电压 300V 750V Rated voltage 300V 750V
额定电流 50A 57A Rated current 50A 57A
耐电压 AC3000V/1Min Withstanding Voltage AC3000V/1Min
使用线径 12-8AWG Wire range 12-8AWG

机械性能   MECHANICAL
温度范围 -40℃~+105℃ Temp.Range -40℃~+105℃
扭矩 1.2Nm(10.5lb.in.) Torque 1.2Nm(10.5lb.in.)

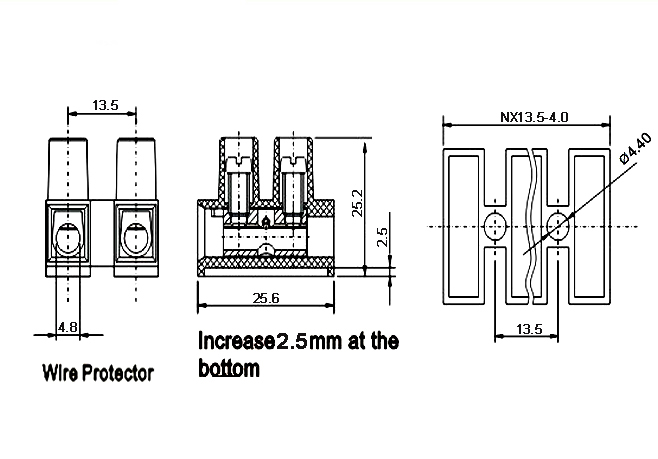

DRAWING DOWNLOAD
