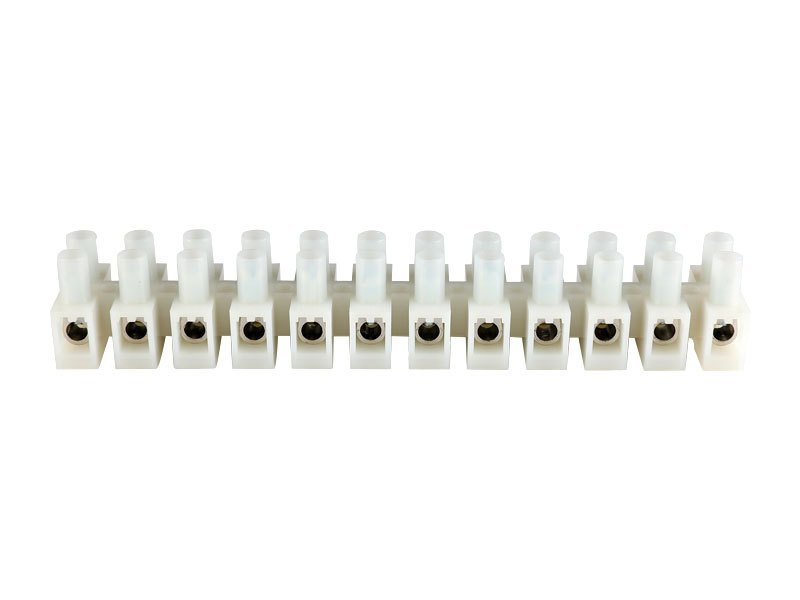

MG12HWP FEED THROUGH TERMINAL BLOCK

MG12HWP
FEED THROUGH TERMINAL BLOCK

0
Views: 1,034
Contact us

Product parameters

认证 APPROVAL

材质及电镀 MATERIAL
间距 12.0MM Pitch 12.0MM
极数 2-12P Poles 2-12P
螺丝 M3.5、钢、镀锌 Screws M3.5、Steel、Zinc plated
端子 合金、镀镍 Contact Alloy、Ni Plated
簧片 不锈钢 Clips Stainless steel
塑件 PA66.UL94V-0 Housing PA66.UL94V-0

电气性能 UL IEC ELECTRICAL UL IEC
额定电压 300V 750V Rated voltage 300V 750V
额定电流 30A 41A Rated current 30A 41A
耐电压 AC3000V/1Min Withstanding Voltage AC3000V/1Min
使用线径 14-10AWG Wire range 14-10AWG

机械性能   MECHANICAL
温度范围 -40℃~+105℃ Temp.Range -40℃~+105℃
扭矩 0.8Nm(7.0lb.in.) Torque 0.8Nm(7.0lb.in.)

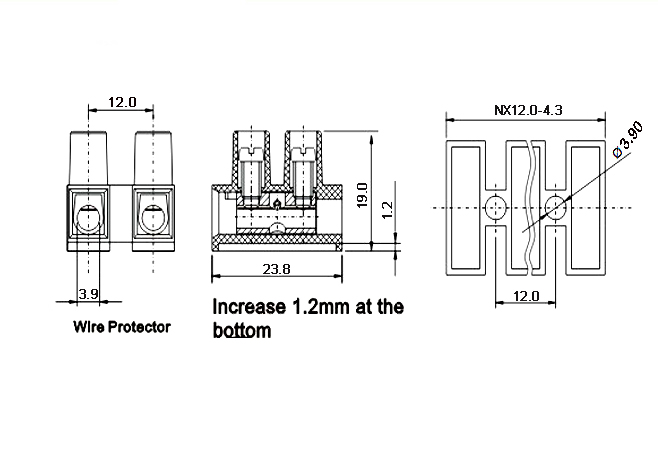

DRAWING DOWNLOAD
