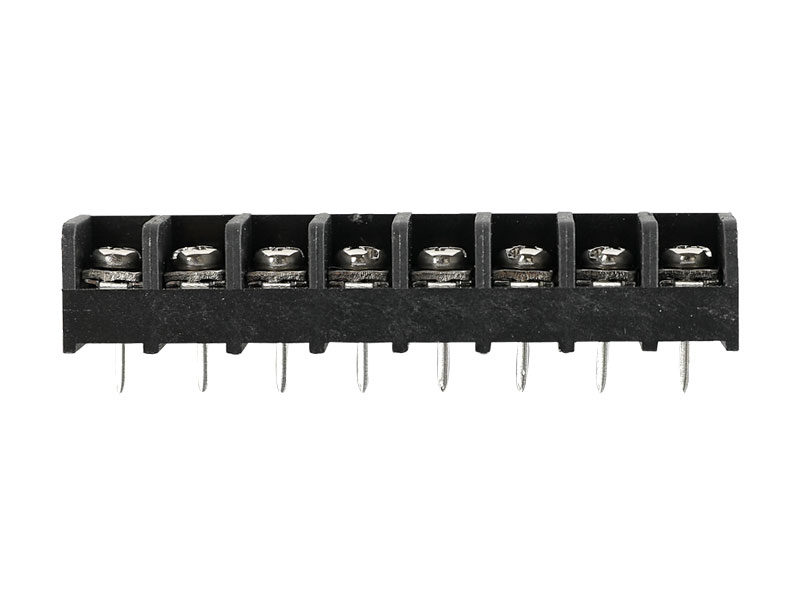

MG65HM-11.0 BARRIER TERMINAL BLOCK

MG65HM-11.0
BARRIER TERMINAL BLOCK

0
Views: 59
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 间距 11.0MM  Pitch 11.0MM
 极数 2P-24P  Poles 2P-24P
螺丝 M4、钢、镀镍 Screws M4、Steel、Ni Plated
端子 黄铜、镀锡 Wire guard Brass、Tin Plated
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压  300V  Rated voltage 300V
 额定电流 30A  Rated current 30A
 耐电压  AC2000V/1Min  Withstanding Voltage   AC2000V/1Min
使用线径 22-12AWG Wire range 22-12AWG

 机械性能    MECHANICAL
 温度范围 -40℃~+105℃  Temp.Range -40℃~+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
扭矩 16KGF.CM Torque 16KGF.CM



DRAWING DOWNLOAD
